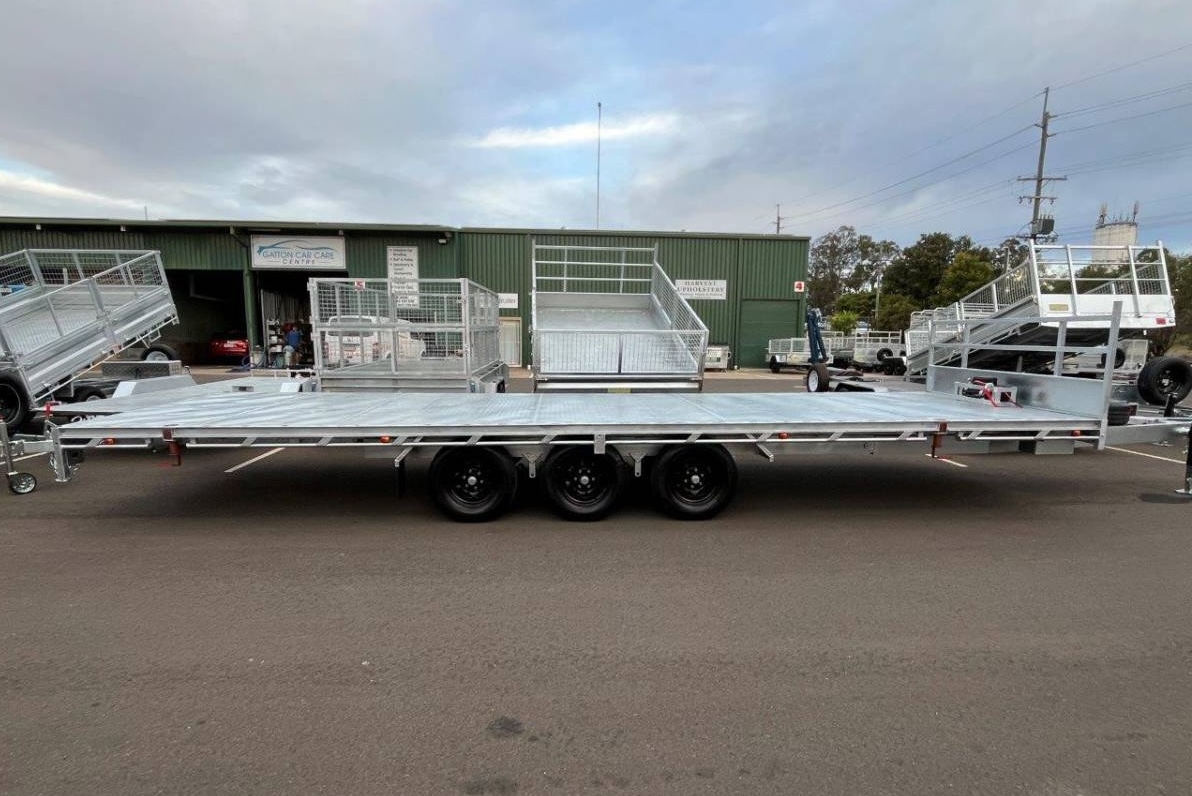

New Upgraded Model 26X 8 ft Tri-Axle Flat Deck Hydraulic Tilt Trailer ATM 4.5 Tonne

Description

8m x 2.4m (26 x 8 ft) Extra Heavy Duty Flat Deck Hydraulic Tipping Trailer ATM 4.490 tonne (4,500kg)

Also available in tandem axle configuration.

LIMITED AVAILABILITY

A massive flat deck trailer design with an ATM of 4490kg.
This Tri Axle trailer featured here is configured with an ATM of 4490kg.

Call for Availability

This trailer is unique in every way and features an underbody hydraulic tilting system, pull-out loading ramps housed underneath the trailer deck. 2024 Model now includes container pins x 4 and Electric over hydraulic 6 wheel disc brakes!!

Trailer has been designed to incorporate an optional 12,000lb remote-controlled electric winch housed at the front of the trailer deck. This new design trailer is a great asset for machinery operators, farmers, tradespeople, and anyone looking for transport of long length products and a high-volume robust and versatile flat deck trailer.

DESCRIPTION AND SPECIFICATIONS

• DECK SIZE: 8.0m x 2.4m (26 x 8ft)
• 900 mm high removable Headboard
• 4 x Container Pins for Container loading transport
• Tare 1940kg Bare trailer. Tri-Axle ATM: 4.5tonne
• 150mm & 120mm & 100mm Min Structural chassis System and Drawbar ultra-strong and flexible
• Under body extra bracing for maximum strength and long-lasting construction
• ATM 4490kg Tri Axle
• Fully Welded Hot Dip Galvanised Heavy-Duty Body and Chassis.

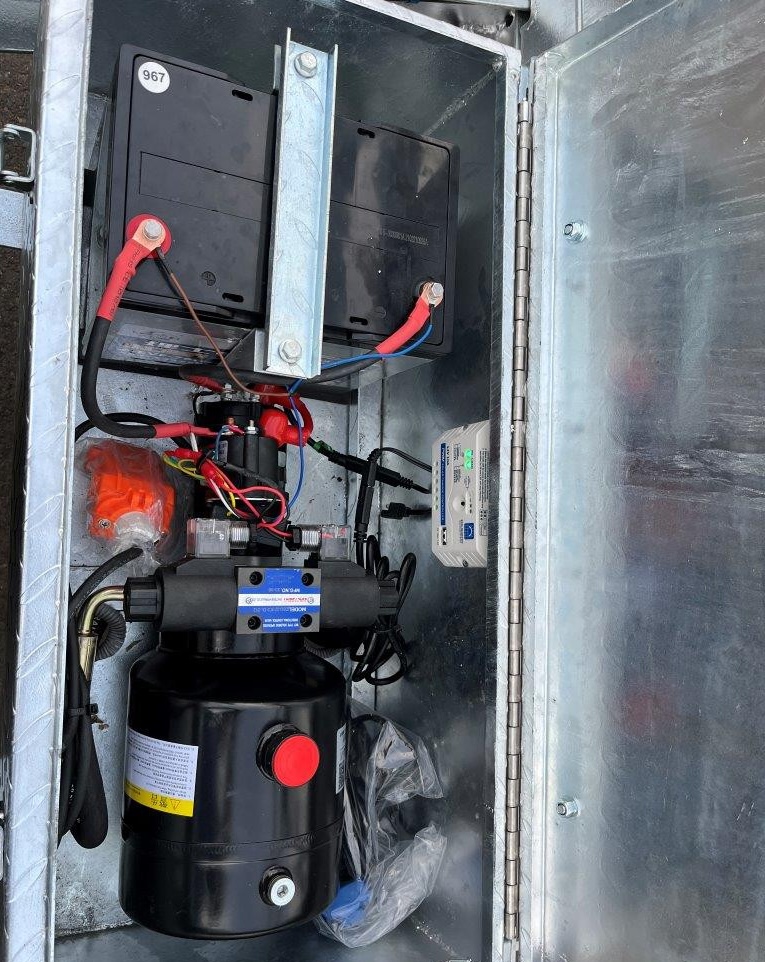

• Toolbox Galvanized for battery and Hydraulic Pump fitted
• 1 x Deep cycle Gel Battery
• Hydraulic Tilt action loading dual Heavy-duty locks

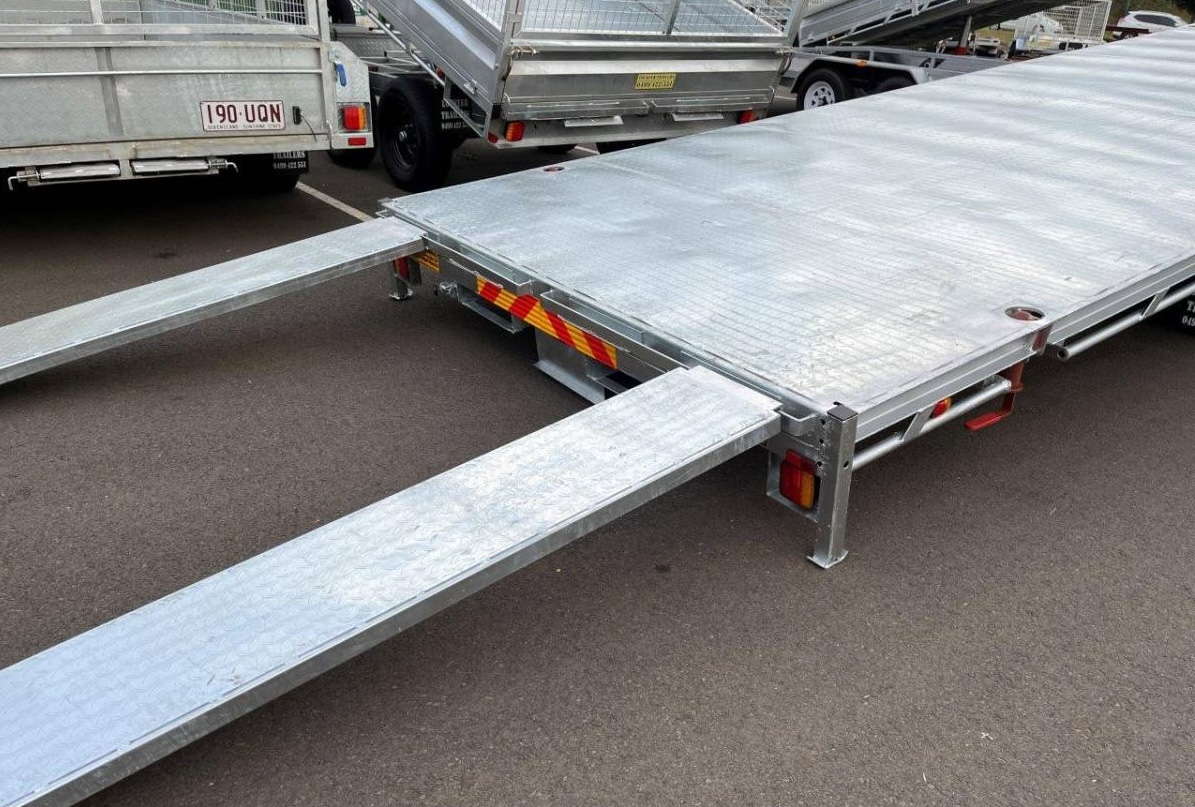

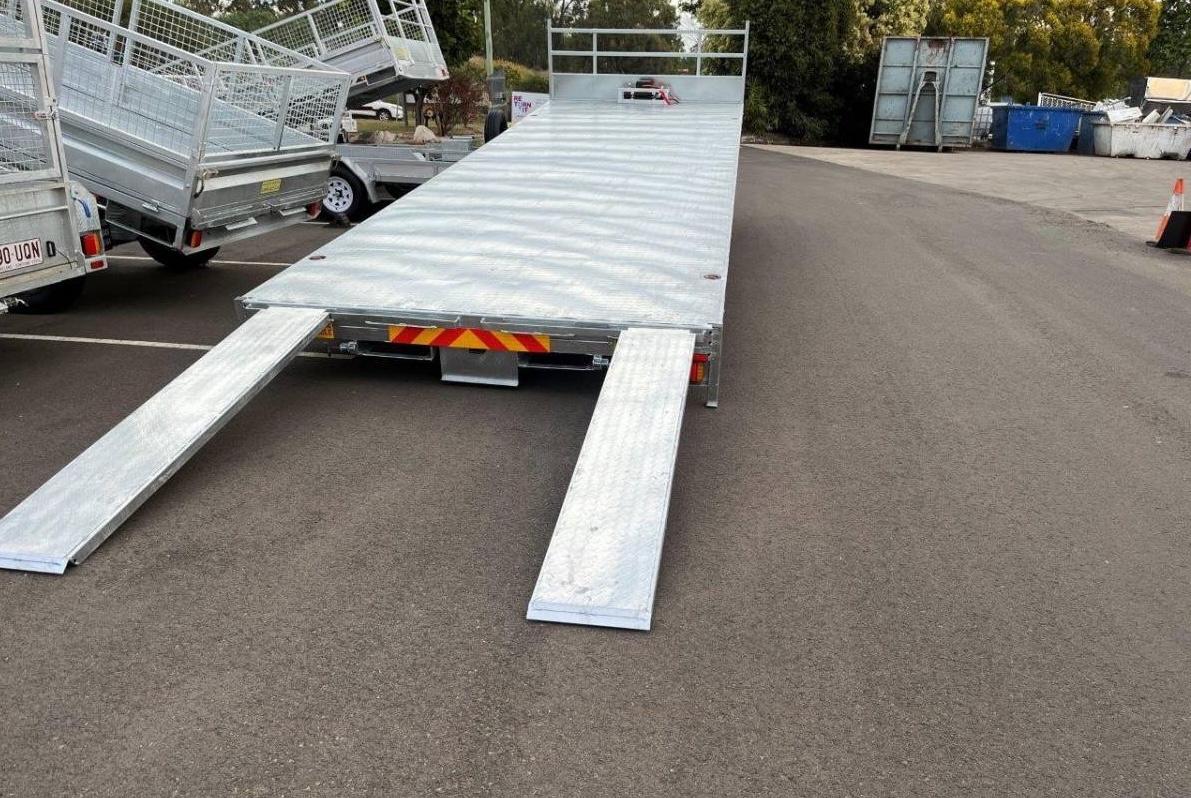

• Heavy Duty slide out Loading Ramps
• Tie Rails full length both sides for straps or chains
• Heavy Duty DEXTER Bearings (Japanese/USA)
• 60sq Axle Solid Each Axle rated at 2000kg each Tri Axle (6Ton Rated)
• Fitted with 6 x 12inch Disc Brakes Electric over hydraulic activation.

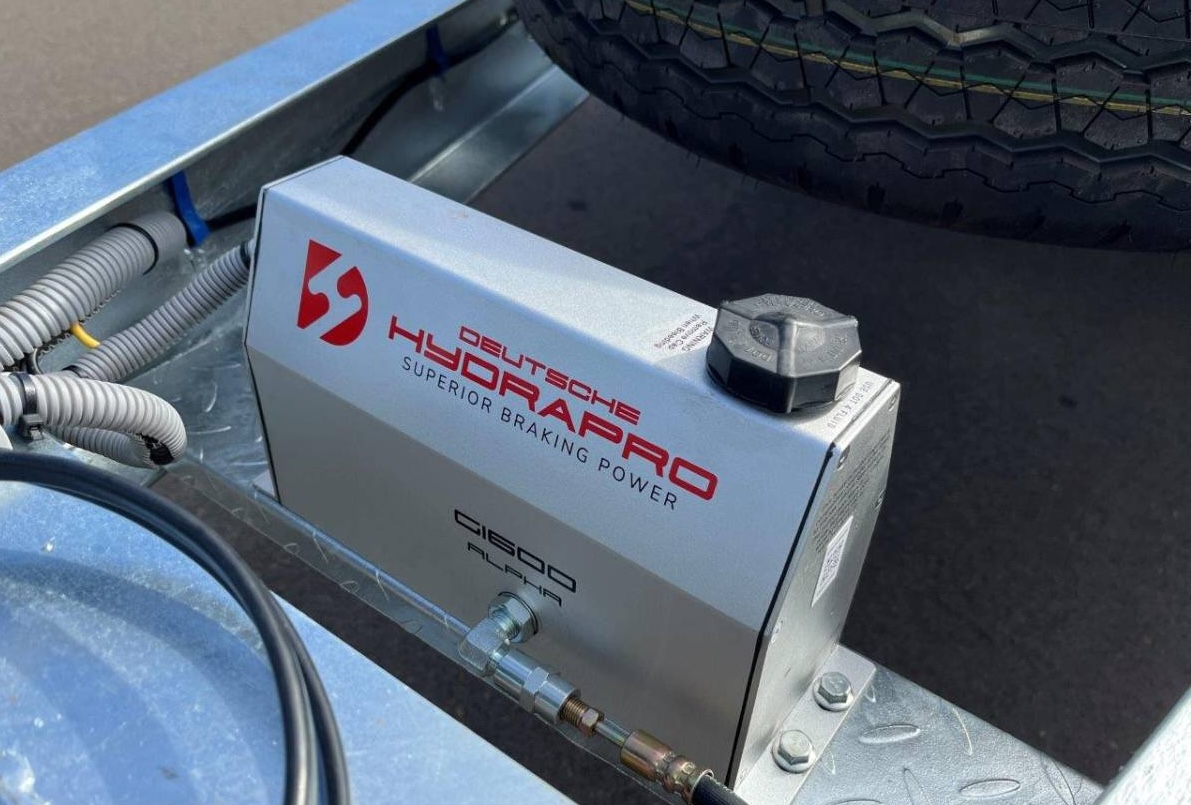

• USA Hydrapro hydraulic activation unit will work with any in car brake controller.
• Anderson plug system for power to Hydrapro hydraulic system.
• Multi-volt 10/30v LED lights with Marker Lights on the sides. ADRs Compliance
• 70mm 4.5t Quick Release or 6000kg Ring Pull Coupling for Tri Axle Trailer
• 2300mm Long Draw Bar. With 150mm x 70mm x 9mm
• Load Sharing Rocker Roller Suspension with Heavy Duty 9 Leaf Springs
• Sunraysia 15inch x 6 stud wheels on tri-axle 4490 kg ATM.
• New 8 Ply 225/70 R15 Light Truck Tyres
• Fitted with wind Up 7000lb Heavy Duty Jockey Stand
